6X4 9 CBM Concrete Mixer Machine Truck With One Sleepers ZZ5257GJBN3641W

Brand Name : SINOTRUK HOWO-7

Model Number : ZZ5257GJBN3641W

Certification : ISO/CCC

Place of Origin : JINAN CITY OF CHINA

MOQ : 1 UNIT

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500 units/month

Delivery Time : 30-45 work days

Packaging Details : Nude

Model : ZZ5257GJBN3641W

Cabin : HW76 Cabin, with 1 sleepers, with A/C

Clutch : Φ430 diaphragm-spring clutch

Gearbox : HW19710, 10F & 2R

Fuel consumption (1/100 km) : 38

Maximum driving speed (km/h) : 92

Contact Now

ZZ5257GJBN3641W HOWO 6X4 9 CBM Concrete Mixer Truck with HW76 Cabin with one sleeper

Description:

Concrete mixer truck is a special truck used to transport concrete for construction; because of its shape, it is often referred to as a field snail truck. These trucks are equipped with cylindrical stirrer to carry mixed concrete. In the course of transportation, the mixing drum will always be rotated to ensure that the concrete carried will not solidify. After the concrete is transported, the inner part of the mixing drum is usually flushed with water to prevent the hardening of the concrete from occupying space, so that the volume of the mixing drum becomes smaller and smaller.
Mixing Volume(M³):9
Stuffing Volume(%):59.3
Feeding Speed(M³/min):≥3
Discharging Speed(M³/min):≤2
Discharge Residue(%):≤0.2
Slump Scope(mm):50~220
Drum Speed( Min):0~16
Water supply Syste:400L/Pneumatic
Drum Material:8/16MnR
Steel:3mm,4mm,5m
Packing:

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:

HOWO-7 6X4 9 CBM Concrete Mixer Truck is produced by SINOTRUK.The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.


Cubage

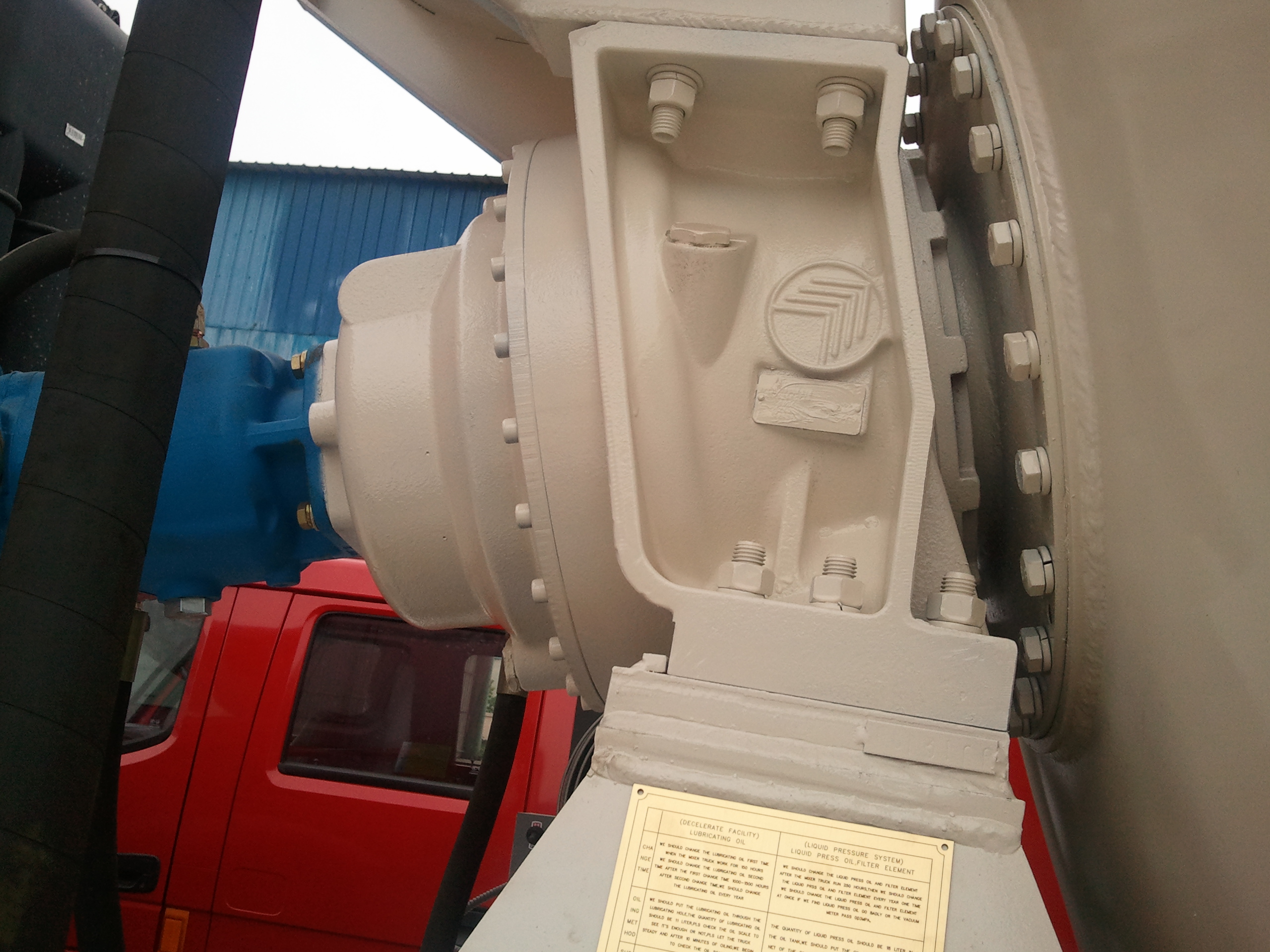

Pump(ARK PV089MHR)+Motor(ARK MF089V)+Reducer(TOP T60)
Mixing Volume(M³):9
Stuffing Volume(%):59.3
Feeding Speed(M³/min):≥3
Discharging Speed(M³/min):≤2
Discharge Residue(%):≤0.2
Slump Scope(mm):50~220
Drum Speed( Min):0~16
Water supply Syste:400L/Pneumatic
Drum Material:8/16MnR
Steel:3mm,4mm,5mm


Weight in kg


Kerb weight (Kg)

13700


Gross vehicle weight (Kg)

30000


Dimension(mm)


Dimensions(mm)

Length(mm)8715
Width(mm)2550
Height(mm)3950
Wheel base (mm)3600+1350


Performance

Maximum driving speed (km/h)92
Fuel consumption (1/100 km)38


Cab

ModelSINOTRUK HOWO HW76 cab
single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner


Engine

ModelWD615.47(Euro 2)
Type6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Horsepower371
Maximum output Kw/r/min272/2200
Maximum torque N.m/r/min1350/1300-1600
Bore x Stroke126x130mm
Valve2
Displacement9.726L
Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan
TransmissionSINOTRUK HW19710 transmission ,10 forward and 2 reverse
Clutch

Φ430 diaphragm-spring clutch,hydraulically operating with air assistance

SteeringZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
Front AxleSINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.
Rear AxlesSINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Brake System

Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

Wheels & TyresRims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.


Electrics

Operating voltage:24V,negative grounded
24V,7.5KW.Starter:24V,7.5 Kw
28V,1500W.Alternator:3-phase,28V,1500 W
Batteries:2x12 V,165 Ah
horn,headlamps,fog lights,brake lights,indicators and reverse light

Oil TankSquare type-400L Aluminum alloy fuel tank


6X4 9 CBM Concrete Mixer Machine Truck With One Sleepers ZZ5257GJBN3641W6X4 9 CBM Concrete Mixer Machine Truck With One Sleepers ZZ5257GJBN3641W
