ZJ20 / 1580CZ 2000m Drilling Depth Truck-Mounted petroleum oil well Drilling Rig
Description
ZJ20/1580CZ truck mounted hydraulic rig is suitable for drilling operation of shallow wells which is less than 2000m, heavy repair operations of oil and gas wells and water well drilling operations. This light truck mounted mechanical drill rig self-developed by our company. Through years of technology innovation and continuous improvement, it has become more mature and reliable.
Features
1. This is the minimum level model for shallow well drilling, suitable for drilling and work-over operation, also can be used for water well drilling operation.
2. CAT/ Cummins series diesel engine can be used.
3. Truck mounted hydraulic rig is equipped with ALLISON hydraulic transmission box. Domestic hydraulic transmission box is also optional.
4. Equipped with 12×8 petroleum-purposed vehicle chassis, which has good cross-country ability.
5. The main brake for the draw-works can be band brake or disc brake, the auxiliary brake can be Eaton pneumatic water cooled disc brake or water brake.
6. Adopting a number of patented technologies, the mechanical drill rig now features reasonable layout, reliable operation performance and low transportation cost, easy for on-site installation and maintenance.
Technical Parameters of Truck Mounted Hydraulic Rig
| Item | Name | Parameter |
| 1 | Drilling depth (41/2″Drill Pipe) m | 2000 |
| 2 | Overhaul depth (31/2″Drill Pipe) m | 5500 |
| 3 | Max. hook load KN | 1580 |
| 4 | Hook speed (m/s) | 0.2 to 1.4 |
| 5 | Mast (m) | 35 |
| 6 | Mast type | A-mast |
| 7 | Engine power (kW) | 470 |
| 8 | Hydraulic transmission box | M6620AR |
| 9 | Transmission type of mechanical drill rig | Hydraulic + Mechanical |
| 10 | Traveling system | 5 × 4 |
| 11 | Main rope diameter (mm) | φ29 |
| 12 | Hook block model | YG160 |
| 13 | Swivel model | SL160 |
| 14 | Rotary table model | ZP175 |
| 15 | Chassis model of truck mounted hydraulic rig | XDP60/12 × 8 |
| 16 | Approach / departure angle | 26°/18° |
| 17 | Min. ground clearance (mm) | 311 |
| 18 | Max. gradeability | 26% |
| 19 | Min. turning diameter | 38 |
| 20 | Overall dimension (m) | 20.5 × 3.05 × 4.4 |
| 21 | Main unit mass (kg) | 65000 |

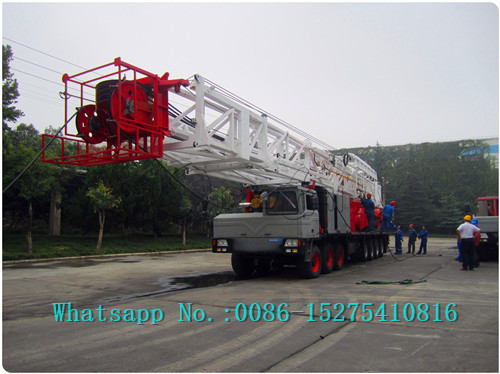

Products Photos:
Our Services
Presale Serivce:
Professional sales team supply personalized service according to customer's requirement.
Order operation:
We will start production of your order within 3 days with strict quality control.
Shipping:
According to different shipping requirements,our company logistics department will ship the Beiben tractor truck to you with our professional service. The necessary custom clearance documents such as contract, commercial invoice, packing list, certificate of origin will be sent to you.
After-sales Service:
Regularly callback to know the Beiben tractor truck working status and offer reasonable tech proposals.
Timely spare parts supply to guarantee the truck working continuously.
Our oversea engineers are ready all the time to serve.
